Product Specifications

Product : PVC Sleeves
PVC SLEEVES
SR.NO WIDTH IN MM SUITABLE FOR BUS BAR SIZE
1 20 MM 9*6/12*3
2 25 MM 12*6/15*3
3 30 MM 16*3/18*6/20*3/18*3
4 35 MM 20*6/25*3
5 41 MM 25*6/25*9
6 55 MM 25*12/30*6/30*10/30*9
7 55 MM 30*12/38*6
8 61 MM 38X9/38*12/40*6/40*10
9 73 MM 50*6
10 81 MM 50*10/50*12/60*6/60*3
11 93 MM 75*6/60*10
12 103 MM 75*12/80*10
13 110 MM 90*6/90*12
14 128 MM 100*6/100*9
15 140 MM 100*12
16 170 MM 125*6/125*10
17 190 MM 150*6/150*10/150*12
18 210 MM 175*6/175*10/175*12
19 230 MM 200*6/200*12

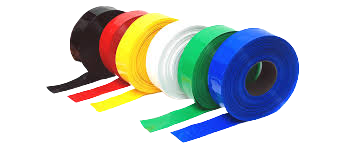

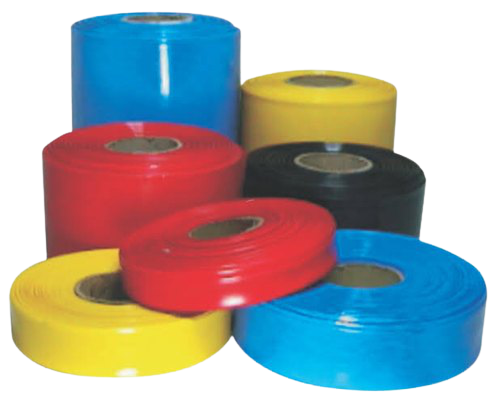

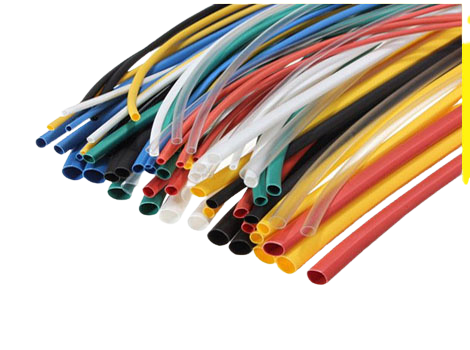

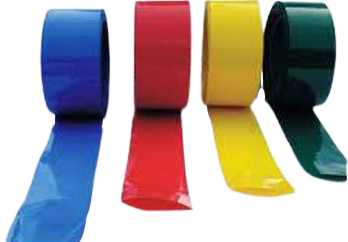

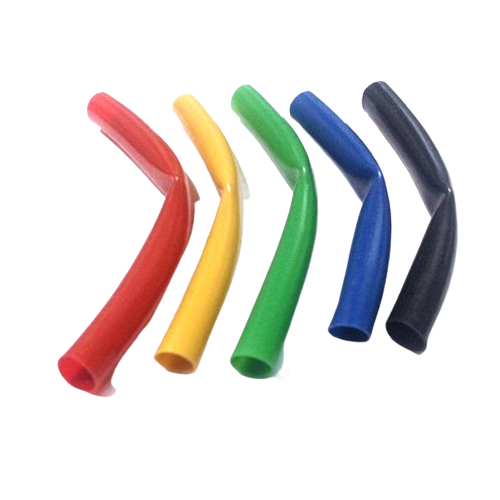

PVC Sleeves Gallery
